High Quality high torque mini 6v 12v dc motor with carbon brush for micro juicer
Model No.: RS-390SA/RS-395SA
Features:
Class F copper wire
High quality carbon brush
27.7mm Housing Diameter
46.5mm housing length
3 or 5 slots rotor
Oil-impregnated bearing or ball bearing
Encode available
Typical Application:
Household Applications
Electric toys
Electric Tools
Pump
Vacuum Cleaner
Product Showcase:

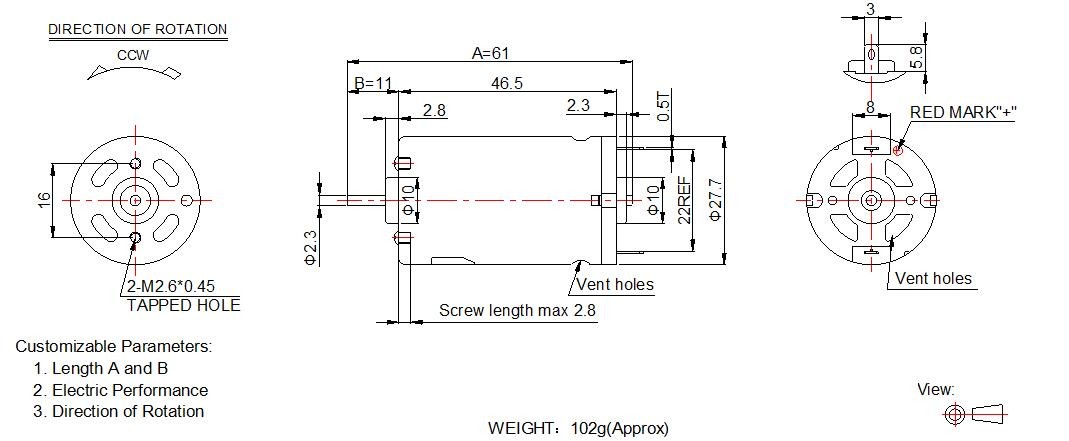

2D Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| RS-390SA-4536R | 3.0~10.0 | 9.0 | 17300 | 0.64 | 14754 | 3.71 | 153 | 15.01 | 23.15 | 1040 | 102.06 | 21.50 |
| RS-395PA-2075R | 6.0~13.0 | 12.0 | 5600 | 0.12 | 4625 | 0.57 | 90.9 | 8.92 | 4.31 | 522 | 51.23 | 2.70 |
| RS-395SA-15120 | 6.0~24.0 | 24.0 | 7800 | 0.07 | 6265 | 0.30 | 72.2 | 7.09 | 4.64 | 385 | 37.78 | 1.30 |
| RS-390PA-4832 | 3.0~7.0 | 6.0 | 16200 | 0.93 | 13800 | 5.50 | 152 | 14.92 | 21.51 | 1050 | 103.04 | 32.50 |
Pls download the PDF document for referrence.
RS-390SA.pdf
Why Us
Professional international sales team which can provide nice communication.
10 years experienced engineer for technical service
100% inspection during production.
High quality raw material for products.
Customiztion is available
Support for small trial order.
Sample is available.
FAQ
Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
