High Speed 6v 12v miniature dc brush motor FC 280 for headlight adjuster and toys
Model No.: FC-280SA
Typical Application:
Electric toys
Small home appliance
Wireless control model
Main Features:
Carbon brush or metal brush
Stainless Steel 2.0mm shaft
Oil-impragnated bearing
Terminal on the housing side
Dual shaft available
Performance can be customized
2D Drawing:
Product Showcase:

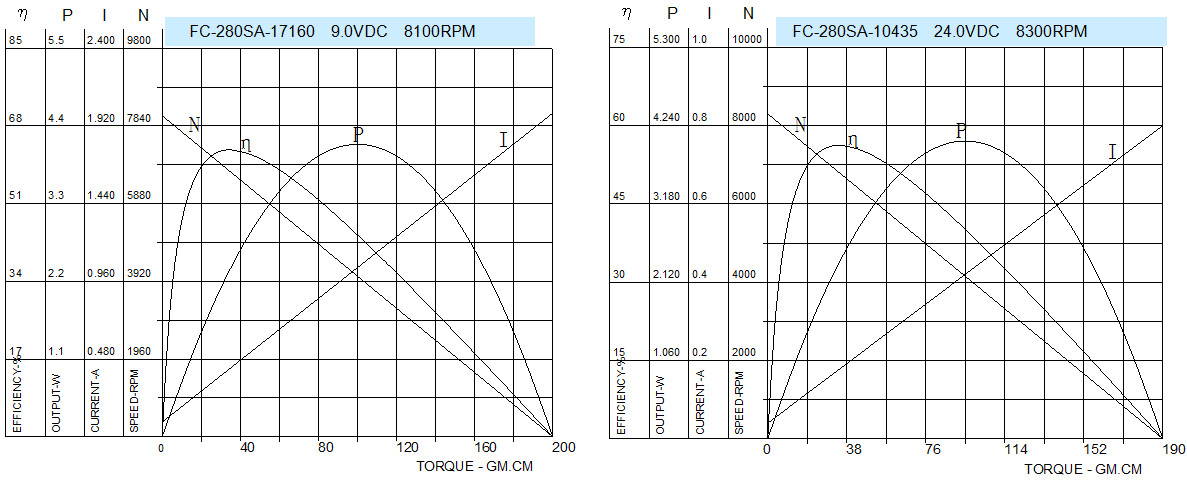

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FC-280SA-17160 | 3.0~10.0 | 9.0 | 8100 | 0.09 | 6682 | 0.43 | 35 | 3.43 | 2.40 | 200 | 19.63 | 2.00 |
| FC-280SA-10435 | 6.0~25.0 | 24.0 | 8300 | 0.04 | 9538 | 0.76 | 41.3 | 4.05 | 4.04 | 190 | 18.65 | 0.75 |
Pls download the PDF document for referrence.
FC-280SA.pdf
Our Advantages:
100% response within 24h
Smooth communication
Skilled internation sales engineer
We will inspec all the motors during production
We can provide special accessories such as gears, encoder and eccentric wheel
FAQ
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: How can I trust you to make sure my money is safe?
A: We are certified by the third party SGS and we have exported to over 85 countries up to June.2017. You can check our reputation with our current customers in your country (if our customers do not mind), or you can order via alibaba to get trade assurance from alibaba to make sure your money is safe.
Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
