10mm DC Plastic Gear Motor 1.5v - 3v 76 RPM For Smart Furniture Lock

Shenzhen Tronsun Motor Co., Ltd
Contact Now

10mm DC Plastic Gear Motor 1.5v - 3v 76 RPM For Smart Furniture Lock

  • 1
  • 2

Brand Name : Tronsun Motor

Model Number : 10PA1012

Certification : RoHS / ISO9001

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500kpcs/month

Delivery Time : 30 days

Packaging Details : TBD

Product Name : plastic DC motor

Reduction ratio : 171/1

Motor Type : brush dc motor

Gearbox Type : Planetary gearbox

Voltage range : 1.5v-3v

Speed range : 50-150rpm

Usage : Furniture Lock

Weight : about 4g

Contact Now

High Quality Low cost 10mm plastic dc gear motor 3v 76rpm for smart furniture lock

Model No.: 10PA1012

Applications:

Smart robots

Toys

Smart home camera

Features:

Plastic gearbox

171/1 planetary gearbox

Micro brush PMDC motor

1.5v-3v rated voltage

50-150rpm

0.1-0.2kg.cm load

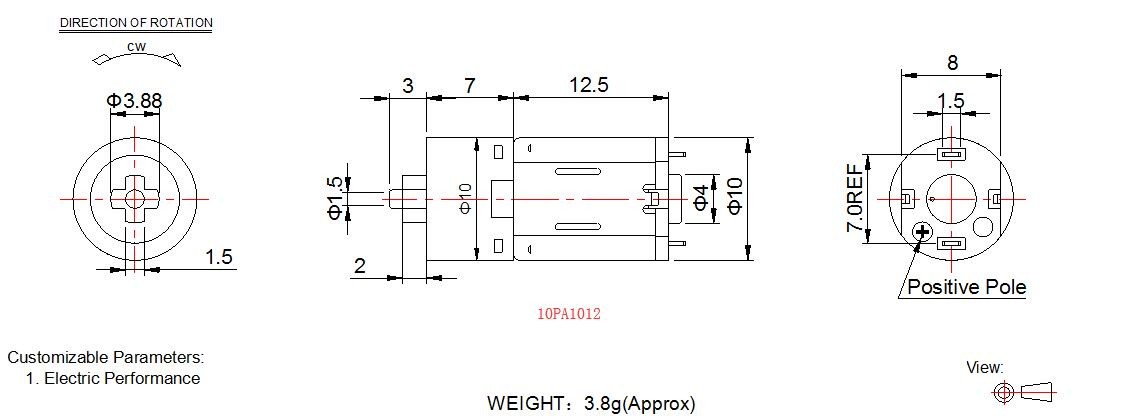

Outline Drawing:

10mm DC Plastic Gear Motor 1.5v - 3v 76 RPM For Smart Furniture Lock

Description:

Standard gearbox

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
g.cm
7 1 171/1 300 500

Motor Performance:


MODEL
REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm W g.cm A
10PA1012-171-0376 171/1 1.5~3.5 3.0 76 0.05 51 0.105 200 0.10 625 0.22
10PA1012-171-05175 171/1 2.0~5.5 5.0 175 0.08 130 0.23 330 0.44 1306 0.66
10PA1012-171-03150 171/1 1.5~3.5 3.0 150 0.09 111 0.26 240 0.27 952 0.76
10PA1012-171-09200 171/1 3.0~9.0 9.0 200 0.085 143 0.22 400 0.59 1436 0.56
10PA1012-171-04.8145 171/1 2.0~5.0 4.8 150 0.075 113 0.185 300 0.35 1365 0.58

Motor Performance such as voltage and speed can be custom made.

Pls find the PDF spec below.

10PA1012.pdf

Product Picture:

10mm DC Plastic Gear Motor 1.5v - 3v 76 RPM For Smart Furniture Lock

FAQ

Q: What is your MOQ?

A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .

Q: Do you have motors in stocks?

A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.

Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
