High Quality 37mm low rpm high torque 12v 24v dc gear motor for dispenser
Model No.: 37GB555
Applications:
Vending Machine
ATM
Power Tool
Home appliance
Dispenser
Features:
37mm Spur gearbox
Carbon brush PMDC Motor
Offset shaft
Different reduction ratio
Flux ring available
Encoder available
Product Showcase:

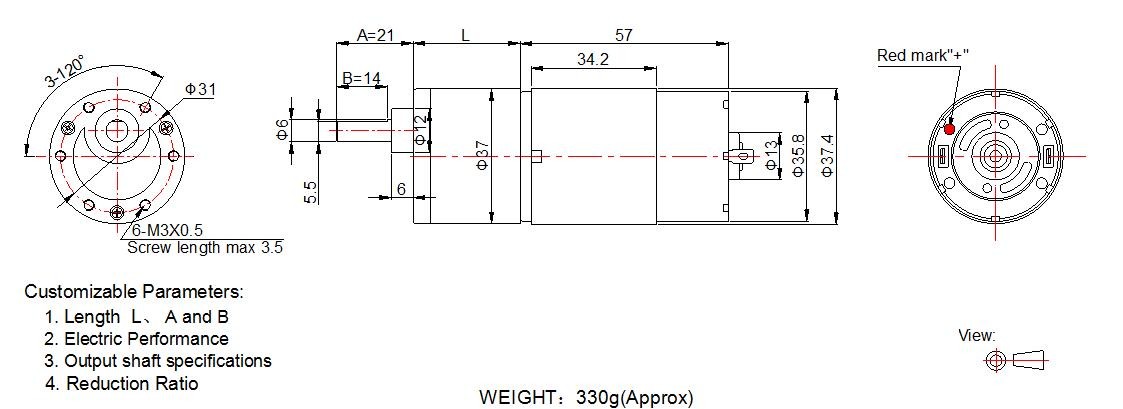

2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 21.5 | 2 (Enhanced) | 8.9/1 | 10.3/1 | | | | | 5.0 | 10.0 |
| 21.5 | 3 | 18/1 | 26/1 | 31/1 | | | | 5.0 | 10.0 |
| 24 | 4 | 40/1 | 46/1 | 55/1 | 68/1 | 79/1 | 93/1 | 7.0 | 13.0 |
| 26.5 | 5 | 102/1 | 120/1 | 165/1 | 202/1 | 238/1 | 278/1 | 10.0 | 20.0 |
| 29 | 6 | 306/1 | 359/1 | 420/1 | 495/1 | 516/1 | 606/1 | 12.0 | 20.0 |
| 31.5 | 7 | 666/1 | 782/1 | 918/1 | | | | 15.0 | 25.0 |
| 31.5 | 5(Enhanced) | 120/1 | | | | | | 30.0 | 50.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 37GB555-8.9-121200 | 8.9/1 | 5.0~14.0 | 12.0 | 1200 | 0.63 | 1032 | 4.4 | 2.5 | 26.46 | 18.0 | 27.6 |
| 37GB555-18-12600 | 18/1 | 5.0~14.0 | 12.0 | 600 | 0.63 | 500 | 4.9 | 5.0 | 25.64 | 32.4 | 27.6 |
| 37GB555-55-12190 | 55/1 | 5.0~14.0 | 12.0 | 190 | 0.63 | 165 | 4.2 | 13.0 | 22.00 | 99.0 | 27.6 |
| 37GB555-120-1290 | 120/1 | 5.0~14.0 | 12.0 | 90 | 0.63 | 72 | 6.0 | 30.0 | 22.15 | 150.0 | 27.6 |
Pls download the PDF document for referrence.
37GB555.pdf
Competitive Advantages:
10 years in manufacturing dc motor and gearbox.
High Product performance: Low noise, High efficiency, long lifespan
Good Service and Nice Communication.
Customization available.
Reasonable price with good quality product.
Small orders accepted.
Sample available.
Prompt Reply and Short Lead time
100% inspection during the production.
FAQ
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.
Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.
