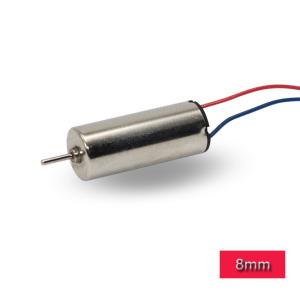

Small Coreless DC Motor 8mm Diameter 1.5v - 7.4v 16mm Length RoHS Approved

Product Categories

Shenzhen Tronsun Motor Co., Ltd

Contact Now

Small Coreless DC Motor 8mm Diameter 1.5v - 7.4v 16mm Length RoHS Approved

Name: Small Coreless DC Motor 8mm Diameter 15v 74v 16mm Length RoHS Approved
Brand: Tronsun Motor
Price: 1 USD

Wholesale Small Coreless DC Motor 8mm Diameter 1.5v - 7.4v 16mm Length RoHS Approved from china suppliers

Brand Name : Tronsun Motor

Model Number : 0816

Certification : RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 500kpcs/month

Delivery Time : 25-35 days

Packaging Details : TBD

Product Name : 8mm dc coreless motor

Voltage Range : 1.5v-7.4v

Diameter : 8mm

Material : RoHS material

Rotation Direction : CW/CCW

Usage : RC models

Shaft : Stainless Steel Shaft

Brush : Metal brush

Contact Now

8mm diameter 7.4v coreless dc motor 16mm length 1.5v 3v coreless motor for RC models

Model No.: 0816-Q

Applications:
RC Model
Electronic Toys
Quardcopter
Toy Drone

Features:
Precious metal brush coreless dc motor
8mm diameter
16mm housing length
Wire length can change
1.5v-7.4v voltage range
20000-50000rpm

Outline Drawing:

Small Coreless DC Motor 8mm Diameter 1.5v - 7.4v 16mm Length RoHS Approved

Motor Performance:

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	V	rpm	A	rpm	A	g.cm	mN.m	W	g.cm	mN.m	A
0816-Q-1	2.0~4.5	4.2	14500	0.012	12400	0.06	1.4	0.14	0.18	9.50	0.93	0.35
0816-Q-2	2.0~4.0	3.2	37000	0.1	32000	0.57	3.9	0.38	1.28	28.00	2.75	3.6
0816-Q-3	3.0~8.0	7.2	15000	0.08	12400	0.035	1.3	0.13	0.17	8.80	0.86	0.2

The shaft length and motor performance can be custom made, such as the voltage and speed.

Pls download the PDF Spec for referrence.
8mm coreless dc motor.pdf

Product Showcase:
Small Coreless DC Motor 8mm Diameter 1.5v - 7.4v 16mm Length RoHS Approved

FAQ
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.
Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.
Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
