High Quality 10mm small 1.5v 3v dc gear motor for smart door lock
Model: 10PA1012/10GFM20
Tytical Application:
Electronic Door Lock
Smart Home appliance
Smart Robot
Features:
Shaft Material: Plastic or metal
Oil-impregnated bearing
Output power 0.1-1W
10mm diameter
Encoder available
Plastic Planetary gearbox or Spur gearbox

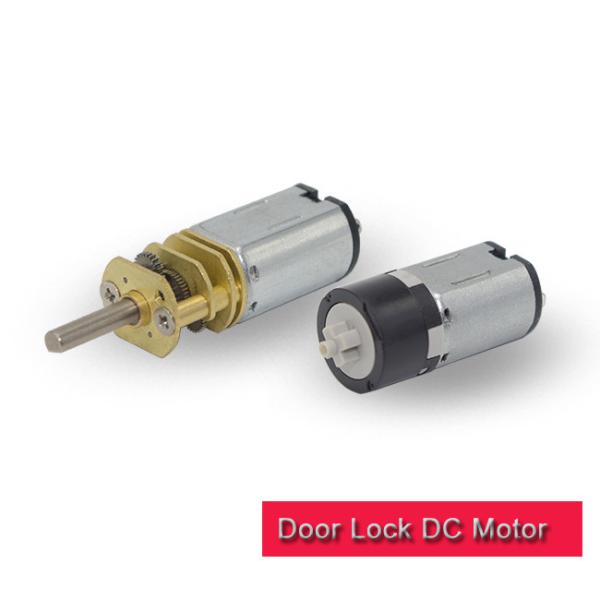

Product Showcase:
Outline Drawing:
Motor Performance:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| g.cm |
| 7 | 1 | 171/1 | | | | | | 300 | 500 |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | W | g.cm | A |
| 10PA1012-171-0376 | 171/1 | 1.5~3.5 | 3.0 | 76 | 0.05 | 51 | 0.105 | 200 | 0.10 | 625 | 0.22 |
| 10PA1012-171-05175 | 171/1 | 2.0~5.5 | 5.0 | 175 | 0.08 | 130 | 0.23 | 330 | 0.44 | 1306 | 0.66 |
| 10PA1012-171-03150 | 171/1 | 1.5~3.5 | 3.0 | 150 | 0.09 | 111 | 0.26 | 240 | 0.27 | 952 | 0.76 |
| 10PA1012-171-09200 | 171/1 | 3.0~9.0 | 9.0 | 200 | 0.085 | 143 | 0.22 | 400 | 0.59 | 1436 | 0.56 |
| 10PA1012-171-04.8145 | 171/1 | 2.0~5.0 | 4.8 | 150 | 0.075 | 113 | 0.185 | 300 | 0.35 | 1365 | 0.58 |
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| g.cm |
| 9 | 5 | 100/1 | 250/1 | | | | | 300 | 800 |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | W | g.cm | A |
| 10GFM20-100-03150 | 100/1 | 1.5~3.5 | 3.0 | 150 | 0.055 | 115 | 0.18 | 120 | 0.14 | 502 | 0.58 |
| 10GFM20-250-0360 | 250/1 | 1.5~3.5 | 3.0 | 60 | 0.055 | 45 | 0.18 | 300 | 0.14 | 1252 | 0.58 |
| 10GFM20-100-06240 | 100/1 | 2.5~6.0 | 6.0 | 240 | 0.045 | 192 | 0.17 | 130 | 0.26 | 665 | 0.68 |
| 10GFM20-250-0695 | 250/1 | 2.5~6.0 | 6.0 | 95 | 0.045 | 78 | 0.16 | 300 | 0.24 | 1665 | 0.68 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
10PA1012.pdf
10GFM20.pdf
FAQ
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.
Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
Q: Can you make a motor with custom specifications?
A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.
