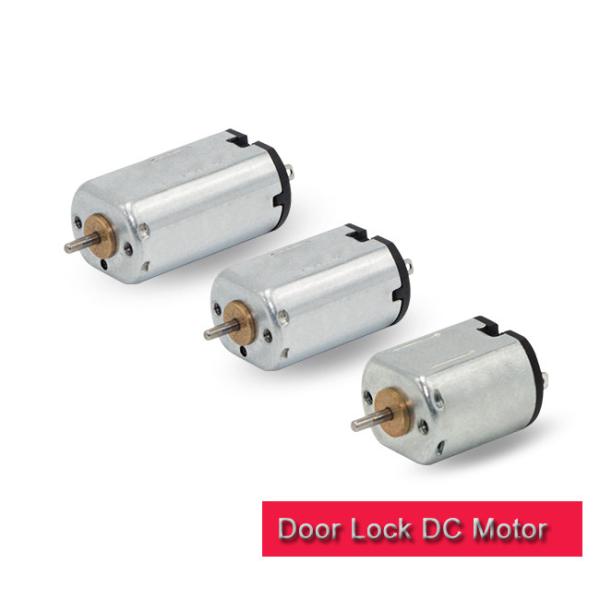

High Speed 10mm mini brush dc motor 3v 6v micro door lock motor
Model: FF-M10TA/FF-M20TA/FF-M30TA
Tytical Application:
Electronic Door Lock
Smart Home appliance
Smart Robot
Electric Toys
Precision Instruments
Features:
Shaft Material: Stainless Steel
Oil-impregnated bearing
Output power 0.1-0.8W
Encoder available
Precious metal brush or carbon brush
3 slot armature
Product Showcase:
Outline Drawing:
Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FF-M10TA-06230 | 2.0~4.0 | 3.0 | 15000 | 0.032 | 10700 | 0.09 | 1 | 0.10 | 0.11 | 3.5 | 0.34 | 0.23 |
| FF-M10TA-07220 | 3.0~6.0 | 5.0 | 28000 | 0.055 | 21300 | 0.175 | 1.8 | 0.09 | 0.09 | 7.5 | 0.74 | 0.56 |
| FF-M10TA-08180 | 3.0~5.0 | 4.5 | 30000 | 0.025 | 23000 | 0.23 | 2.2 | 0.22 | 0.52 | 9.6 | 0.94 | 0.81 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FF-M20TA-09120 | 2.0~4.0 | 3.0 | 15000 | 0.045 | 11700 | 0.16 | 1.9 | 0.19 | 0.23 | 8.5 | 0.83 | 0.58 |
| FF-M20TA-07175 | 3.0~6.0 | 6.0 | 24000 | 0.036 | 19500 | 0.16 | 2.1 | 0.21 | 0.42 | 11.5 | 1.13 | 0.68 |
| FF-M20TA-08145 | 2.0~4.0 | 3.7 | 16600 | 0.025 | 12600 | 0.15 | 2.2 | 0.22 | 0.28 | 9.2 | 0.90 | 0.47 |
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A |
| FF-M30TA-1188 | 2.0~4.0 | 3.0 | 14800 | 0.05 | 11600 | 0.2 | 2.7 | 0.26 | 0.32 | 13.8 | 1.35 | 0.8 |
| FF-M30TA-08155 | 2.0~4.0 | 3.0 | 8100 | 0.02 | 6300 | 0.07 | 1.7 | 0.17 | 0.11 | 7.5 | 0.74 | 0.25 |
| FF-M30TA-10135 | 2.0~6.0 | 6.0 | 21000 | 0.06 | 16300 | 0.23 | 3.6 | 0.35 | 0.60 | 16.5 | 1.62 | 0.82 |
The Shaft and the motor performance such as voltage and speed can be custom made.
PLS download PDF spec for referrence.
FF-M10TA.pdf
FF-M20TA.pdf
FF-M30TA.pdf
FAQ
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
