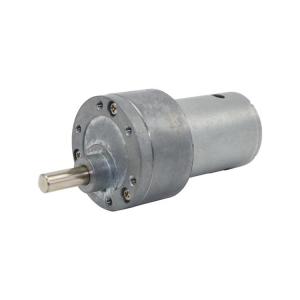

High Quality 37mm offset shaft gearvox with 380 dc motor 12 volt dc gear motor for ATM
Model No.: 37GB380
Applications:
Vending Machine
Industry products
Medical Instruments
Pirnter
Features:
Offset shaft spur gearbox
380/385 brush dc motor
10-20kg.cm load
6v-24v voltage range
Encoder available
Threaded shaft available
Product Showcase:
2D Drawing:
GEARBOX REDUCTION RATIO:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 21.5 | 2 (Enhanced) | 8.9/1 | 10.3/1 | | | | | 5.0 | 10.0 |
| 21.5 | 3 | 18/1 | 26/1 | 31/1 | | | | 5.0 | 10.0 |
| 24 | 4 | 40/1 | 46/1 | 55/1 | 68/1 | 79/1 | 93/1 | 7.0 | 13.0 |
| 26.5 | 5 | 102/1 | 120/1 | 165/1 | 202/1 | 238/1 | 278/1 | 10.0 | 20.0 |
| 29 | 6 | 306/1 | 359/1 | 420/1 | 495/1 | 516/1 | 606/1 | 12.0 | 20.0 |
| 31.5 | 7 | 666/1 | 782/1 | 918/1 | | | | 15.0 | 25.0 |
| 31.5 | 5(Enhanced) | 120/1 | | | | | | 30.0 | 50.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 37GB380-31-06240 | 31/1 | 3.0~8.0 | 6.0 | 240 | 0.27 | 201 | 1.42 | 1.7 | 3.50 | 10.7 | 7.5 |
| 37GB380-93-0680 | 93/1 | 3.0~8.0 | 6.0 | 80 | 0.27 | 67 | 1.5 | 5.0 | 3.44 | 29.5 | 7.5 |
| 37GB380-165-0645 | 165/1 | 3.0~8.0 | 6.0 | 45 | 0.27 | 38 | 1.42 | 7.5 | 2.92 | 46.8 | 7.5 |
| 37GB380-278-0626 | 278/1 | 3.0~8.0 | 6.0 | 26 | 0.28 | 22 | 1.42 | 12.0 | 2.71 | 78.7 | 7.5 |
| 37GB3540-495-1215 | 495/1 | 3.0~8.0 | 6.0 | 15 | 0.28 | 12.6 | 1.45 | 20.0 | 2.58 | 126.0 | 7.5 |
Pls download the PDF document for referrence.
37GB380.pdf
FAQ
Q: What's the lead time for regular order?
A: For orders, the standard lead time is 25-35 days and this time can be shorter or longer based on different model, period and quantity.
Q: Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q: Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
